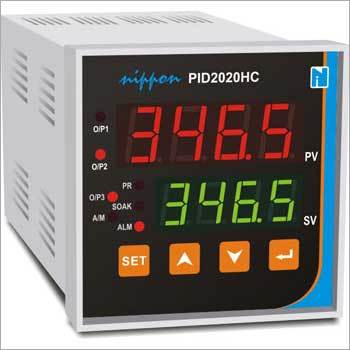

PID Controller

PID Controller
PID Controller
Product Code : 2020HC
Brand Name : Nippon PID Controller
Product Description

We have become a famous manufacturer, supplier and exporter of Nippon PID Controller. Our Nippon PID Controller is widely utilized in Heat Cool application. The auto tuning of the controller can be done by limiting cycle auto-tuning. It is available with two separating outputs for heating as well as cooling. It is designed to be easily connected through any digital communication. Overshoot protection is given to the controllers for safe usage.

Table A:

INPUT
SENSOR
RANGE
ACCURACY
R.T.D. PT-100 -200 to 600 °C ± 1 °C
PT-1000 0 to 500 °C ± 1 °C
THERMOCOUPLES Chromel/Alumel (K) 0 to 1300 °C ± 1 °C
Iron - Constantan (J) 0 to 750 °C ± 1 °C
Copper-Constantan (T) -200 to 350 °C ± 1 °C
Pt / Rh (R or S) 0 to 1700°C ± 1 °C
D.C. LINEAR INPUTS 4 to 20 mA / 0 to 20 mA User Programmable ± Least count
± 50 mV, ± 100 mV,
± 200 mV, ± 250 mV
User Programmable ± Least count
± 1V, ± 3.3V,
± 5V, ± 10V
User Programmable ± Least count

Specifications:

Input
ONE UNIVERSAL Input
Thermocouples : J,K,T,R,S
RTD's : PT-100, PT-1000
DC mA : 0 – 20 mA, 4 – 20 mA (Maximum 12 Volts)
DC mV : ± 50 mV, ± 100 mV, ± 200 mV, ± 250 mV
DC Volts : ± 1V, ± 3.3V, ± 5V, ± 10V
Range Refer 'table A''
Ambient Compensation automatic, ambient 0-60 °C
Resolution
1 or 0.1 or .01 or .001 programmable
Display Super bright in 4 + 4 format , with NO BLINK programming technique
  • Upper 4 digits 0.5” red colour
  • Lower 4 digits 0.39” green colour
Ananciation L.E.D's 7 L.E.D.'s , 3 mm , multi colour,
3 for O/P's, 1 each for A/M, Alarm, Profile, Soak Time
Parameter Setting By soft touch, Elegant, Sturdy membrane keys & User friendly menu driven software
Outputs THREE, Programmable outputs with modular attachments
  • Relay module
  • SSR module
  • 4-20 mA module
  • Retransmission module
Note
  • Output modules are predefined
  • All three outputs can be assigned as relay or SSR or 4-20 mA, this means at a time either 3 relays or 3 SSR's or 3 4-20 mAs outputs also available
INPUT Control Outputs Rating Relay SPST 230V / 3 Amp, 12 volts DC pulses for , 4-20 mA (Load 450 ohms)
CONTROLS
  Control Action
PID / On-OFF / TP
  • PID P = Propotional Band = 1.0 to 999.9 units adjustable
    I = Integral = 0 to 3600 ( 0-1200) seconds adjustable
    D = Derivative = 0 to 500 seconds adjustable
    CT = Cycle Time = 0.5 to100 seconds adjustable
  • On-OFF Hysteresis = 1 to 99 units adjustable
  • Time Proportional = 0.1 to 100.0 units adjustable
  Control Action Assign
  • PID for O/P 1 and O/P 2
  • ON-OFF for O/P 1, O/P 2 , O/P 3
  • T/P for O/P 1, O/P 2 , O/P 3
  Control Modes
Heat / Cool / Heat-Cool
  Overshoot Control
Provided
  Soak Timer
  • Assigned for O/P 2 or O/P 3, Soak Timer programmable (HH-MM or MM-SEC)
  • Set Point Start up or Power on start up
  Manual Output
Provided, 0 to 100%
ALARMS Assigned for O/P2 and O/P3
Alarm Types : Low / High /Band /Deviation / End of Profile
Alarm Acknowledge : Latchable / Unlatchable
Alarm Inhibit : Available
Retransmission 4-20 mA or 20-4 mA or 0-20 mA or 20-0 mA programmable, Non-isolated,
Retransmission assign for O/P 2 and O/P 3 Provided on request
Communication RS485, 2-Wire, Half duplex
RS485 MODBUS on request, MODBUS RTU or ASCII
Baud Rate Programmable 1200/2400/4800/9600, contact factory for higher Baud Rates
PROFILER 2 Profile Programmes / 8 Segments Each
  • Each segment programmable for either RAMP or SOAK
  • Profiler can be configured as : - RAMP/SOAK - RAMP/RAMP - SOAK/SOAK - SOAK/COOL
  • Soak Time programmable in HH-MM , MM-SEC
  • Overshoot control during profile
  • Event on End of segment and / or End of profile
